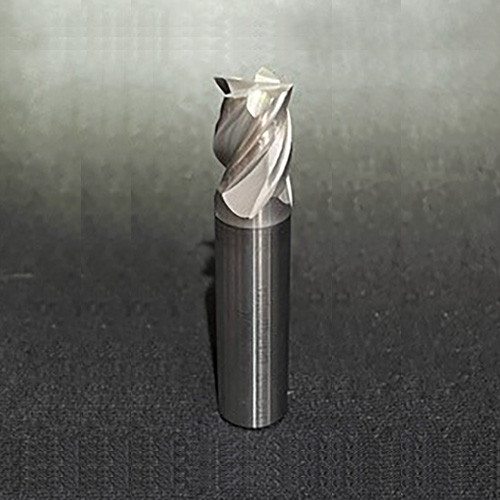

SX4F1.0 S2
Extreme Performance Carbide End Mill For Today's Difficult-To-Machine Aerospace Alloys
| Cutting Diameter (DC) | 1″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1″ | Forma | Square |
| Depth of Cut Maximum (APMX) | 1-1/2″ | Grade | S2 |
| Overall Length (OAL) | 4″ | Body Material | Carbide |
| Cutting Edge Material | Carbide | Decimal Equivalent | 1″ |
| Coating | coated | Measurement Type | Inch |
| Flute Count (NOF) | 4 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 37 Degrees | Unit | I |
Product Features
| Family Description | Extreme Performance Carbide End Mill For Today's Difficult-To-Machine Aerospace Alloys | FamilyName | SX4F |
| COO | Usa | BrandName | SuperMill |
Shipping Info
Weight per item
0.0000
Name
Square & Corner Radius End Mills
FamilyName
SX4F
BrandName
SuperMill
